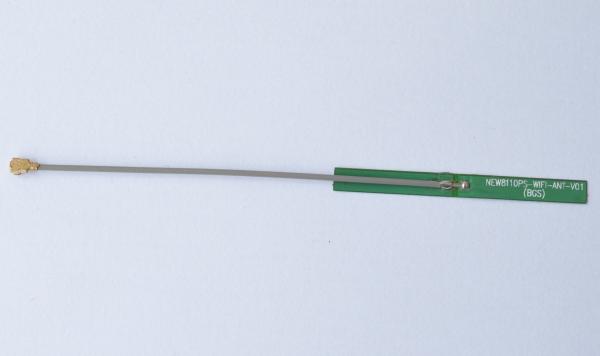

Portable Desktop WIFI Bluetooth Antenna Wireless Network Connection

Dongguan Boges Communication Technology Co., Ltd

Portable Desktop WIFI Bluetooth Antenna Wireless Network Connection

Brand Name : BOGES

Model Number : BGS-NB2400-113-8110-L

Certification : RoHs

Place of Origin : Dongguan, Guangdong, China

MOQ : Negotiable

Supply Ability : 10K Per Day

Delivery Time : 15 Days

Packaging Details : PE Bag / Carton

Price : Negotiable

Frequency : 2400 ~ 2500 MHz

S.W.R : 1.5 Max.

Impedance : 50 OHM

Return Loss : >=10 dB

Cable : RF 1.13 Cable

Connector : UFL connector

Contact Now

Portable Desktop WIFI Bluetooth Antenna Wireless Network Connection

Detail Product Description

Frequency: 2400 ~ 2500 MHz

S.W.R: 1.5 MAX

Impedance: 50 ohm

Cable: RF 1.13 Cable

Connector: UFL connector

Application:

1. Notebook PC WLAN

2. PAD

Specification

A. Electrical Characteristics

Frequency

2400 ~ 2500 MHz

Impedance

50 ohm

S.W.R

1.5 MAX

Return Loss

>=10dB

Insertion Loss

<=1.5dB

B. Material & Mechanical Characteristics

Cable Type

RF 1.13 Cable

Connector Type

UFL connector

Pull Test

>= 1.0Kg

C. Environmental

Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C

Characteristics and Reliability Test

Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

S Parameter Test Data
